The product is made of high-quality alloy cold-rolled steel plate, which is formed by spot welding Iafter stretching. After phosphating, the outer surface is subjected to electrostatic spraying treatment, and the inner cavity is filled with standard pure cement. The upper surface is pasted with high wear-resistant and fire-resistant high-pressure layer board (HPL) or PVC board, with straight or folded edges around. All steel anti-static flooring is made by pouring cement into a spot welded metal shell, which has a high conductivity and outstanding anti-static performance.

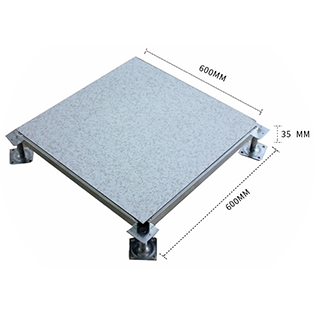

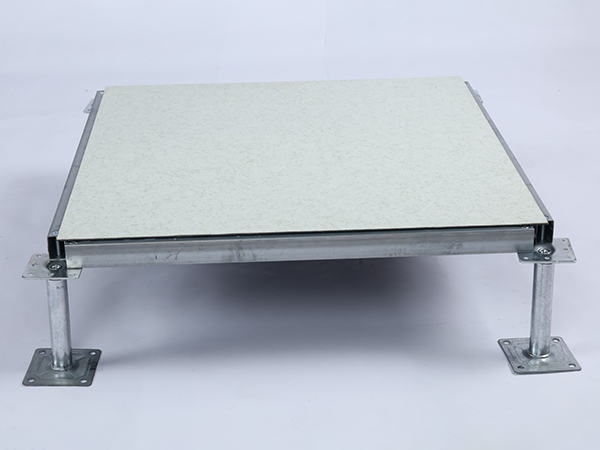

All steel borderless anti-static floor

Product Overview

The product is made of high-quality alloy cold-rolled steel plate, which is formed by spot welding Iafter stretching. After phosphating, the outer surface is subjected to electrostatic spraying treatment, and the inner cavity is filled with standard pure cement. The upper surface is pasted with high wear-resistant and fire-resistant high-pressure layer board (HPL) or PVC board, with straight or folded edges around. All steel anti-static flooring is made by pouring cement into a spot welded metal shell, which has a high conductivity and outstanding anti-static performance.

Performance Parameter
All steel borderless anti-static floor
model specifications concentrated load Uniformly distributed load ultimate load Fire resistance performance Remarks
LB N KG
LP-QGW600CQ 600*600*35 500 1960 200 9720 5880 B1
LP-QGW600Q 600*600*35 680 2950 300 12500 8850 B1
LP-QGW600P 600*600*35 800 3550 360 16000 10680 B1

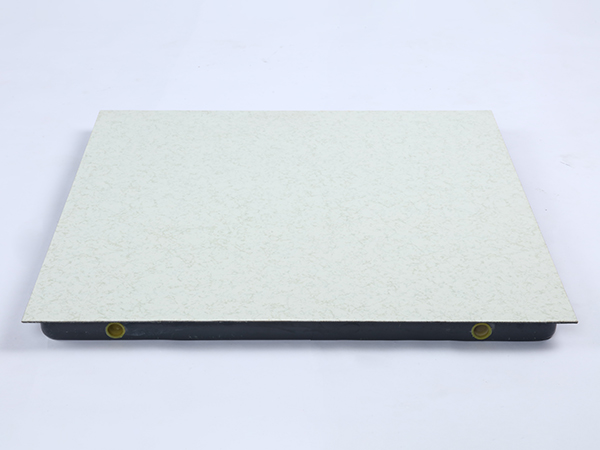

Product Details
  • High temperature flame retardant and fireproof

    All-steel fireproof material, flame retardant and high temperature resistant, non-deforming and non-fading

  • High stability and strong bearing capacity

    Made of high-quality steel base material, high density, hard quality, pressure-resistant, impact-resistant

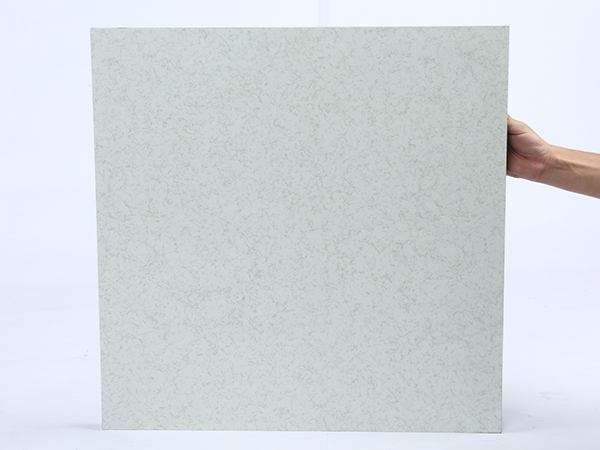

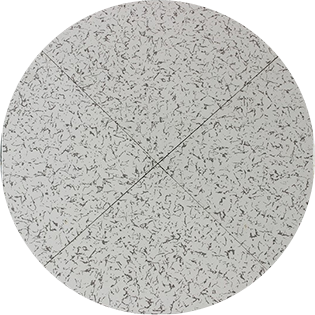

  • Anti-static overlay

    Cold pressed steel plate, fireproof, anti-slip

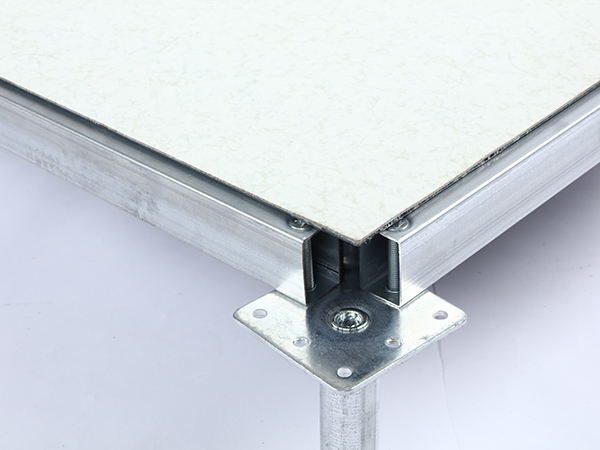

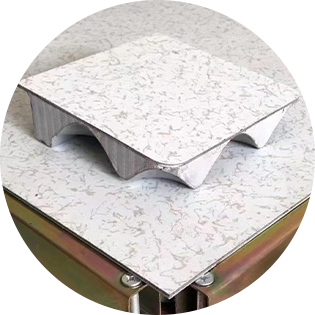

  • Cross stiffeners with strong load-bearing capacity

    high-quality cold-rolled steel cross reinforcement ribs make the floor rust-free and stronger bearing

  • Real-world case studies

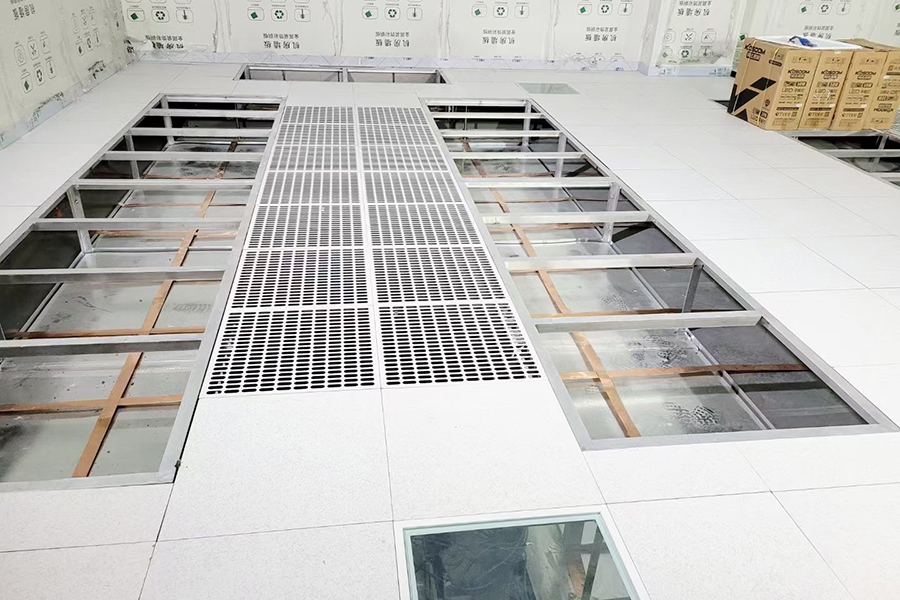

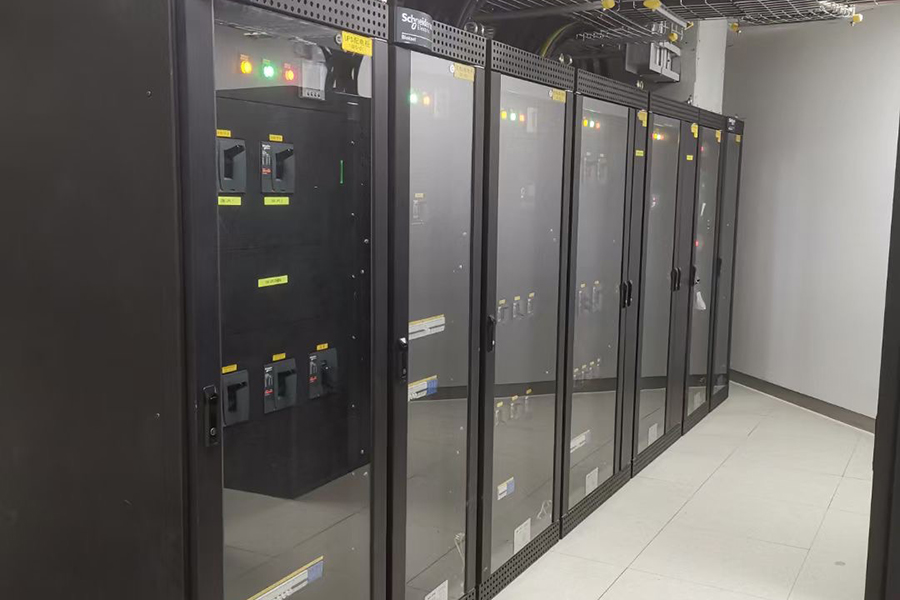

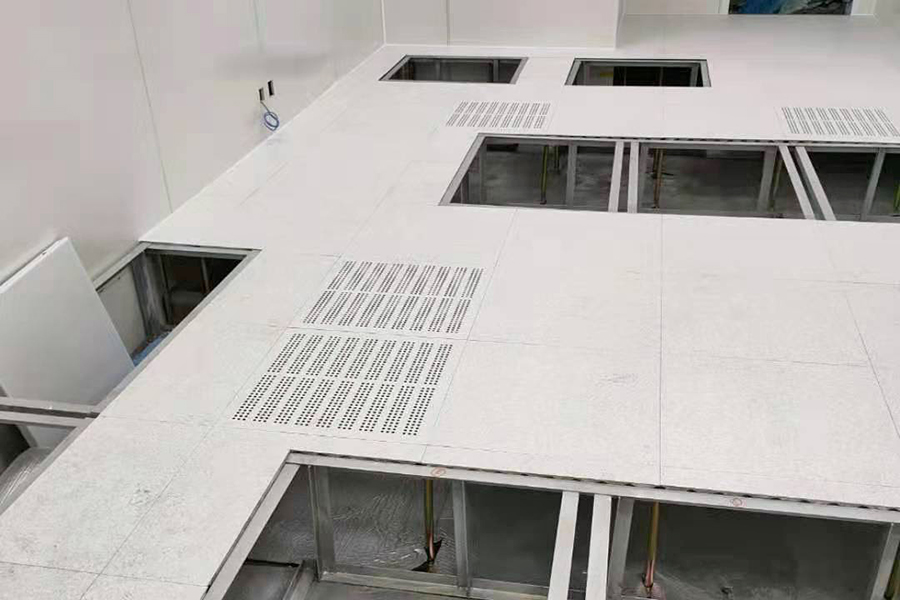

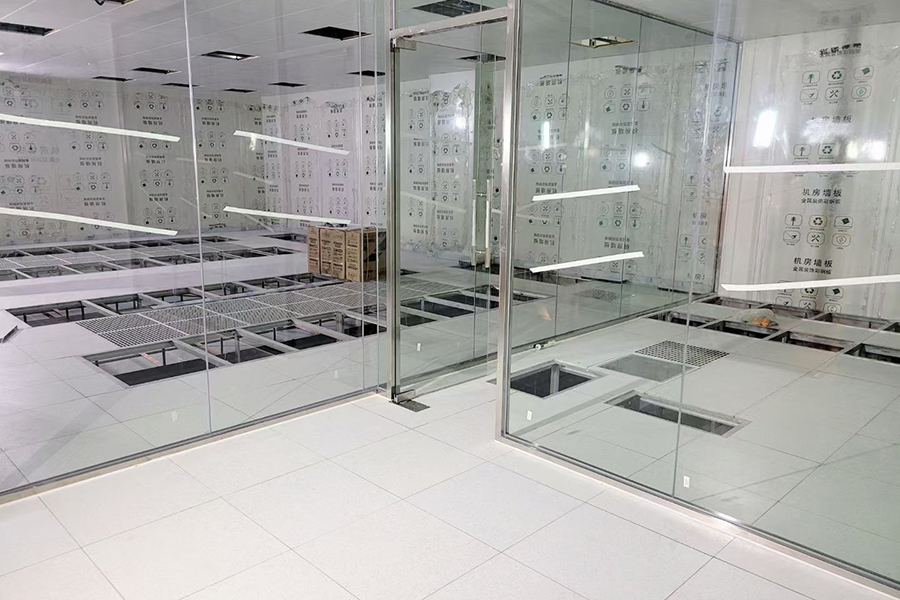

    Plant equipment
    Product shipment
