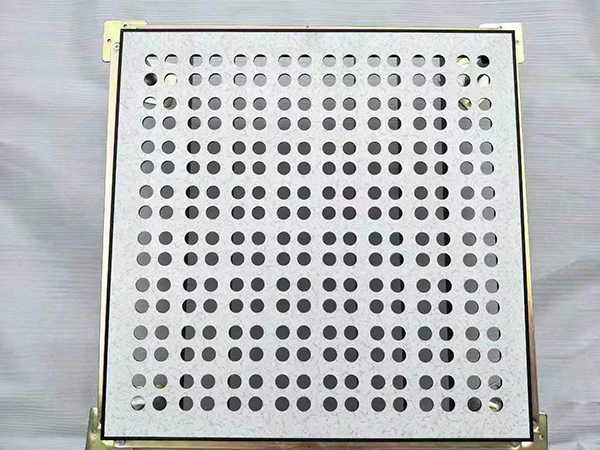

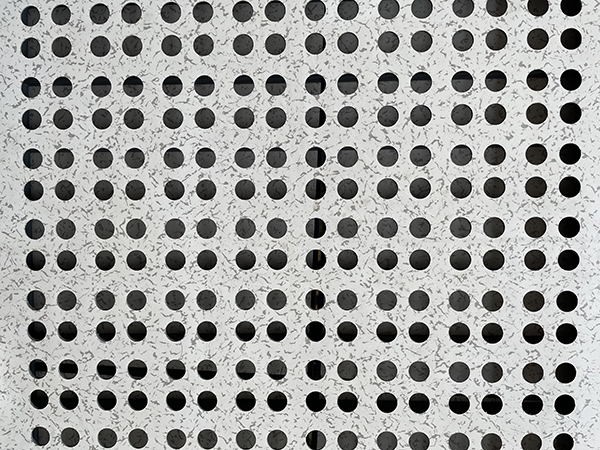

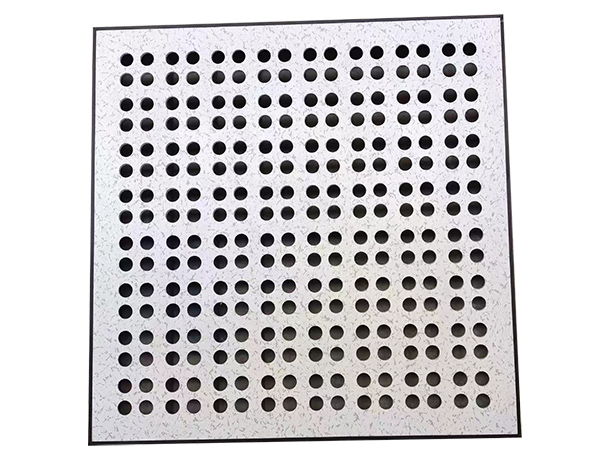

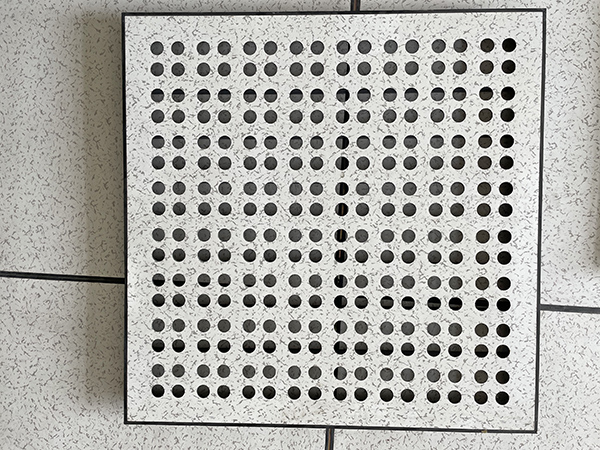

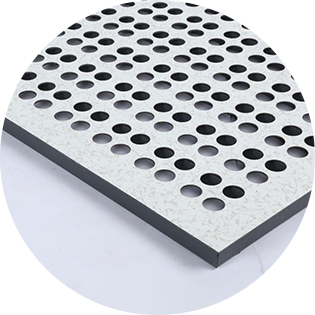

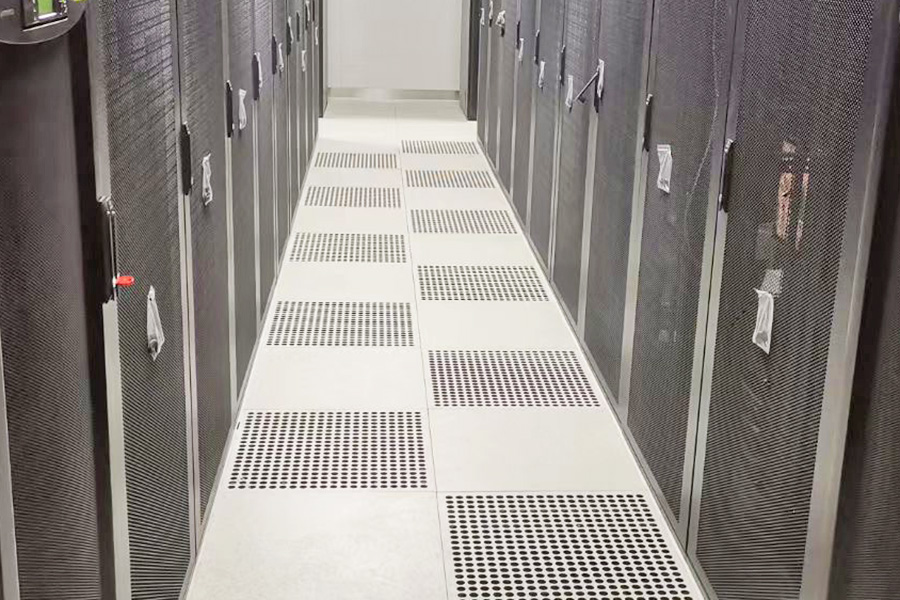

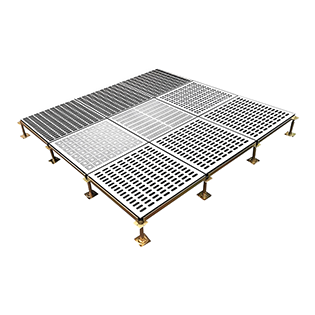

The structure of the ventilation board is similar to that of the anti-static all steel loverhead raised floor, but without foaming filler. The ventilation system is composed of circular ventilation holes. Ventilation raised floor is used in conjunction with all steel raised raised raised floor, for places with ventilation requirements below the floor, with a floor ventilation rate of 17% -36%. |
|
The structure of the ventilation board is similar to that of the anti-static all steel loverhead raised floor, but without foaming filler. The ventilation system is composed of circular ventilation holes. Ventilation raised floor is used in conjunction with all steel raised raised raised floor, for places with ventilation requirements below the floor, with a floor ventilation rate of 17% -36%.
| All steel elevated ventilation floor | ||||||||
| model | specifications | concentrated load | Uniformly distributed load | ultimate load | Fire resistance performance | Remarks | ||
| LB | N | KG | ||||||
| LP-TF601CQ | 600*600*35 | 500 | 1960 | 200 | 9720 | 5880 | B1 | |
| LP-TF600Q | 600*600*35 | 680 | 2950 | 300 | 12500 | 8850 | B1 | |
| LP-TF600P | 600*600*35 | 800 | 3550 | 360 | 16000 | 10680 | B1 | |
All-steel fireproof material, flame retardant and high temperature resistant, non-deforming and non-fading
Made of high-quality steel base material, high density, hard quality, pressure-resistant, impact-resistant
Cold pressed steel plate, fireproof, anti-slip
high-quality cold-rolled steel cross reinforcement ribs make the floor rust-free and stronger bearing
