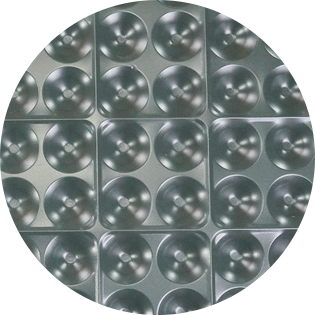

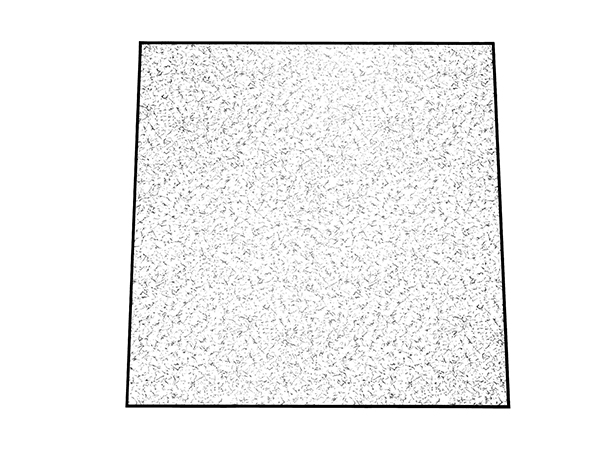

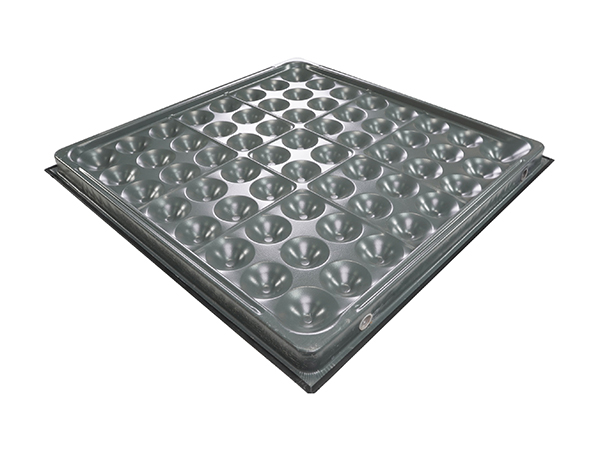

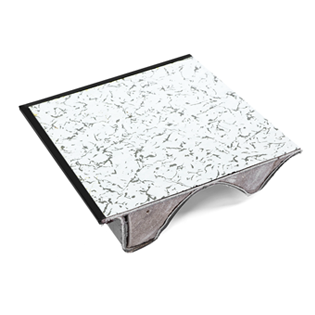

The product is made of high-quality alloy cold rolled steel plate, which is formed by spot welding after stretching. After phosphating, the outer surface is sprayed with plastic and the inner cavity is filled with foam cement. The upper surface is pasted with high wear-resistant hemp surface anti-static hydrogen trimeric adhesive (HPL) or PVC veneer, and conductive edges are embedded around it. |
|
The product is made of high-quality alloy cold rolled steel plate, which is formed by spot welding after stretching. After phosphating, the outer surface is sprayed with plastic and the inner cavity is filled with foam cement. The upper surface is pasted with high wear-resistant hemp surface anti-static hydrogen trimeric adhesive (HPL) or PVC veneer, and conductive edges are embedded around it.

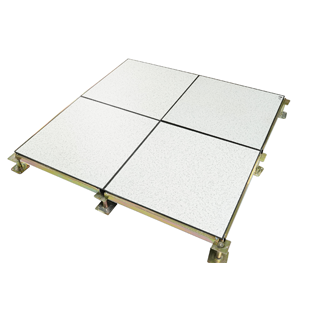

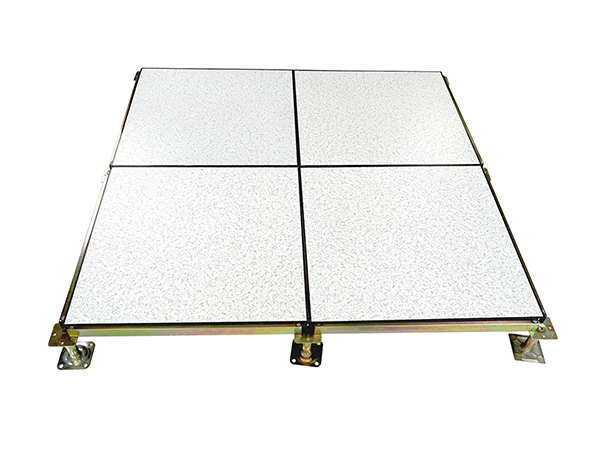

| All Steel Anti-Static Flooring | ||||||||
| model | specifications | concentrated load | Uniform load | ultimate load | Fire resistance performance | Remarks | ||
| LB | N | KG | ||||||
| LP-QG600CQ | 600*600*30 | 500 | 1960 | 200 | 9720 | 5880 | B1 | |
| LP-QG600Q | 600*600*35 | 680 | 2950 | 300 | 12500 | 8850 | B1 | |
| LP-QG600P | 600*600*35 | 800 | 3550 | 360 | 16000 | 10680 | B1 | |
All-steel fireproof material, flame retardant and high temperature resistant,non-deforming and non-fading
Made of high-quality steel base materialhigh density, hard quality. pressure-resistant,impact-resistant
finish HPL/ceramic,fireproof,anti-slip

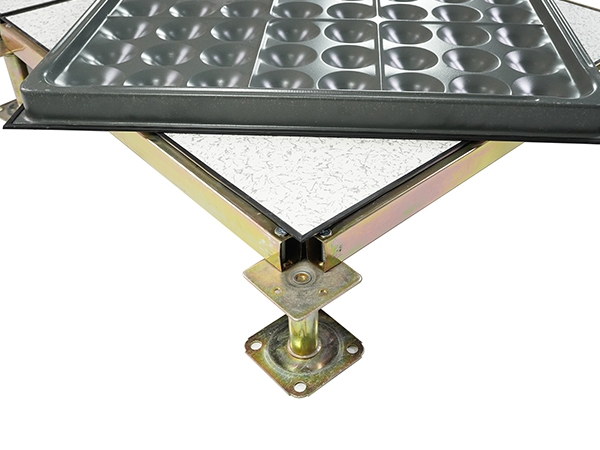

high-quality cold-rolled steel cross reinforcement ribs make the floor rust-free and stronger bearing
