Your location  Home: -> Preducts:  ->  Office Flooring  ->  OA network floor 600X600

The floor shel is made of high-quality cold-rolled steel plate, which is stretched and welded into shape. The surface is phosphatized and then subjected to electrostatic spraying, while the interior is filed with high-quality foam cement. in order to solve the wiring dificulties caused by the increasing number of modern inteligent building pipelines, this floor can be equipped with movable cable tray boards to lay various types of pipelines. Simply lift the cable tray cover plate to lay and maintain various types of pipelines, making installation and maintenance extremely convenient.

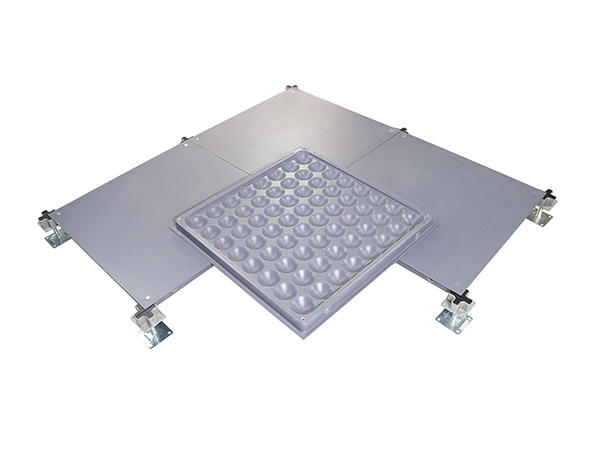

OA network floor 600X600

Product Overview

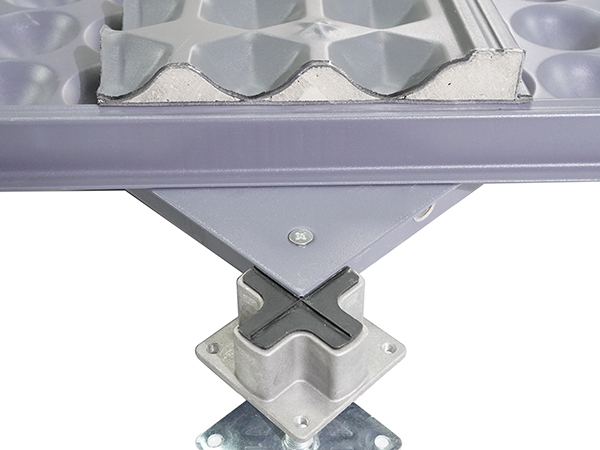

The floor shel is made of high-quality cold-rolled steel plate, which is stretched and welded into shape. The surface is phosphatized and then subjected to electrostatic spraying, while the interior is filed with high-quality foam cement. in order to solve the wiring dificulties caused by the increasing number of modern inteligent building pipelines, this floor can be equipped with movable cable tray boards to lay various types of pipelines. Simply lift the cable tray cover plate to lay and maintain various types of pipelines, making installation and maintenance extremely convenient.

Performance
  • Strong in carrying capacity and good in fire prevention and corrosion resistance due to al-steel combination and compression molding forming

  • Good in interchangeability, easy to assemble and fast to repair because of modular design Creating an industrial era by use of the new industry model

  • Performance Parameter
    OA network floor 600X600
    model specifications concentrated load Uniform load ultimate load Fire resistance performance Remarks
    LB N KG
    LP-OA600CQ 600*600*33 500 1960 200 9720 5880 A
    LP-OA600Q 600*600*33 680 2950 300 12500 8850 A
    LP-OA600P 600*600*33 800 3550 360 16000 10680 A
    Product Details
  • High temperature flame retardant and fireproof

    All-steel fireproof material, flame retardant and high temperature resistant, non-deforming and non-fading

  • High stability and strong bearing capacity

    Made of high-quality steel base material, high density, hard quality, pressure-resistant, impact-resistant

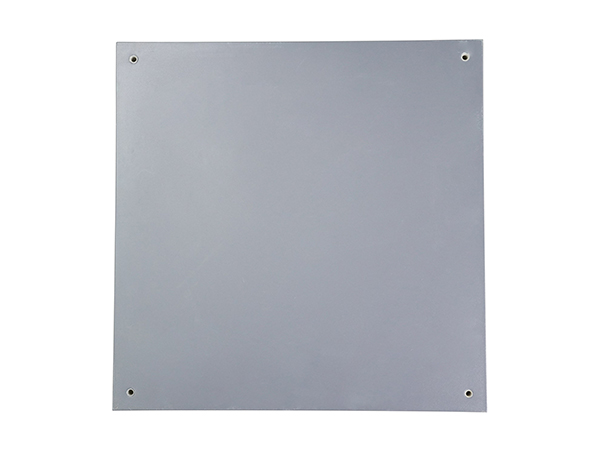

  • Anti-static overlay

    Cold pressed steel plate, fireproof, anti-slip

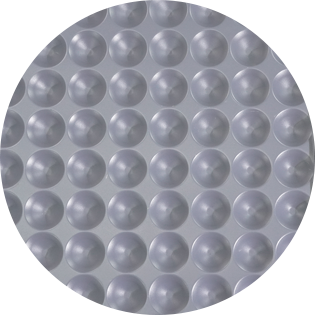

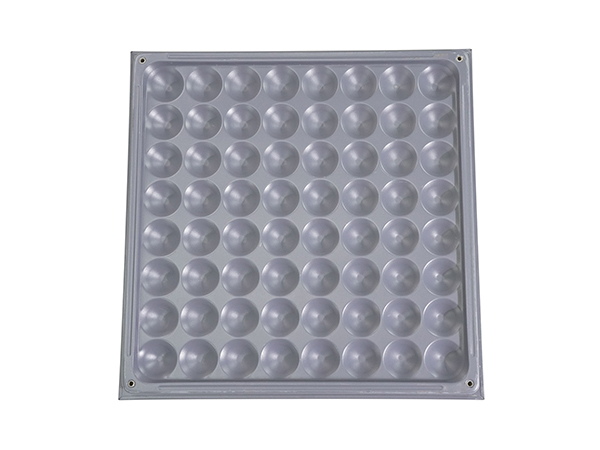

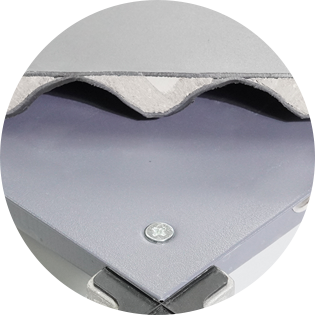

  • Cross stiffeners with strong load-bearing capacity

    high-quality cold-rolled steel cross reinforcement ribs make the floor rust-free and stronger bearing

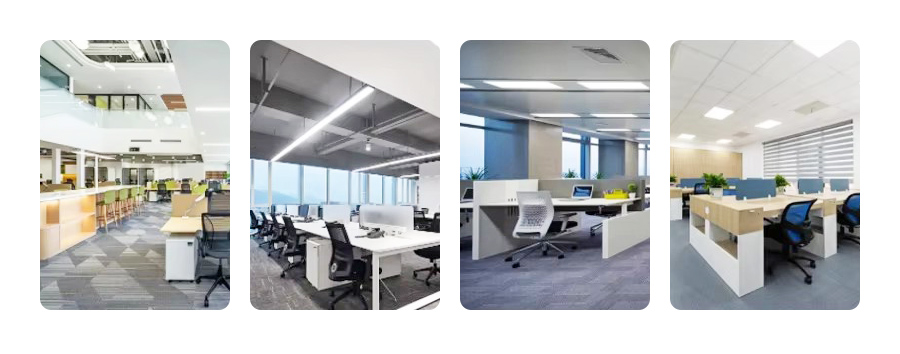

  • Applicable scenarios

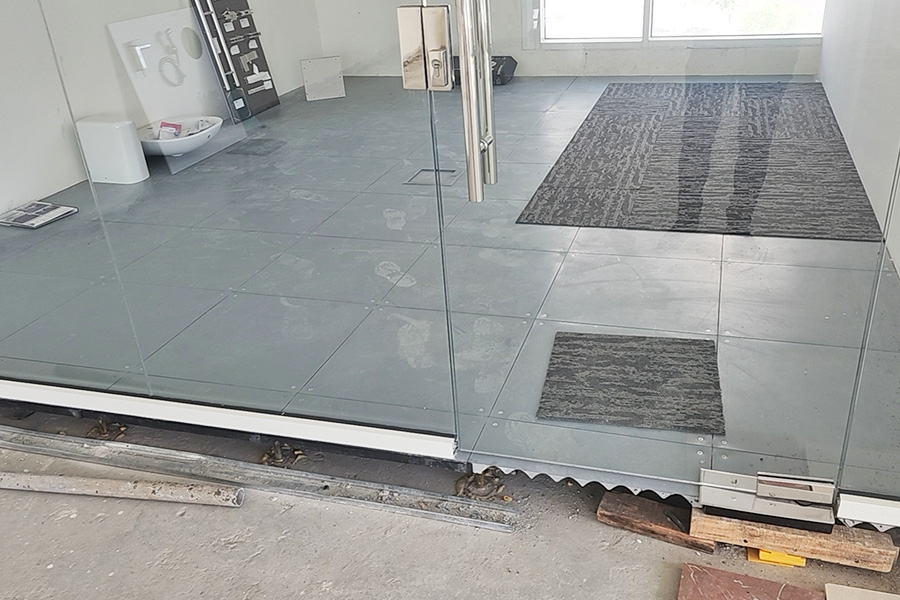

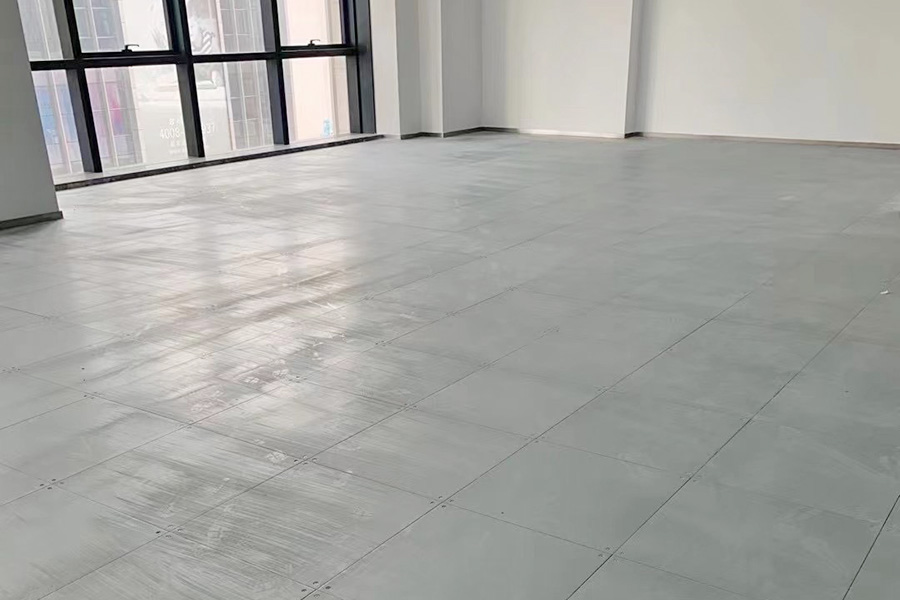

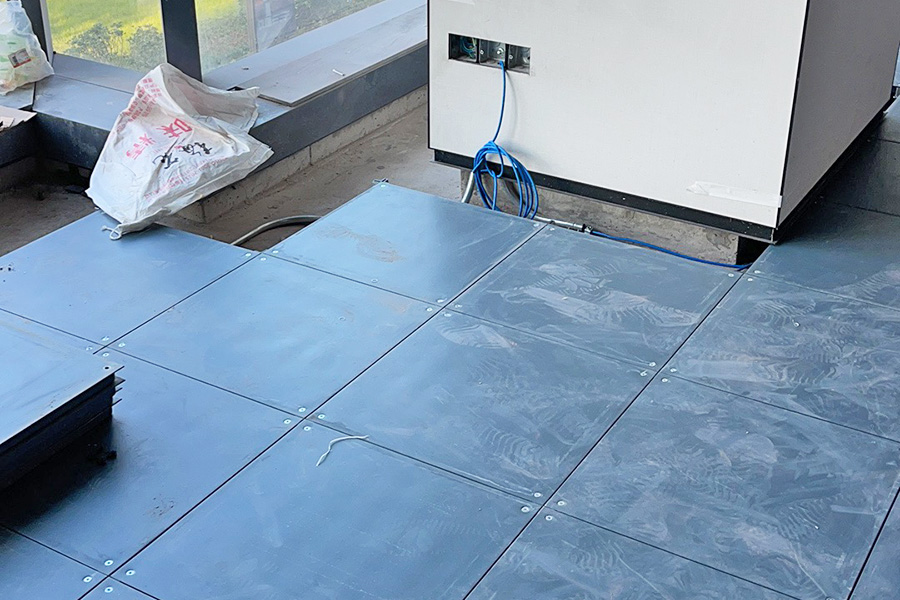

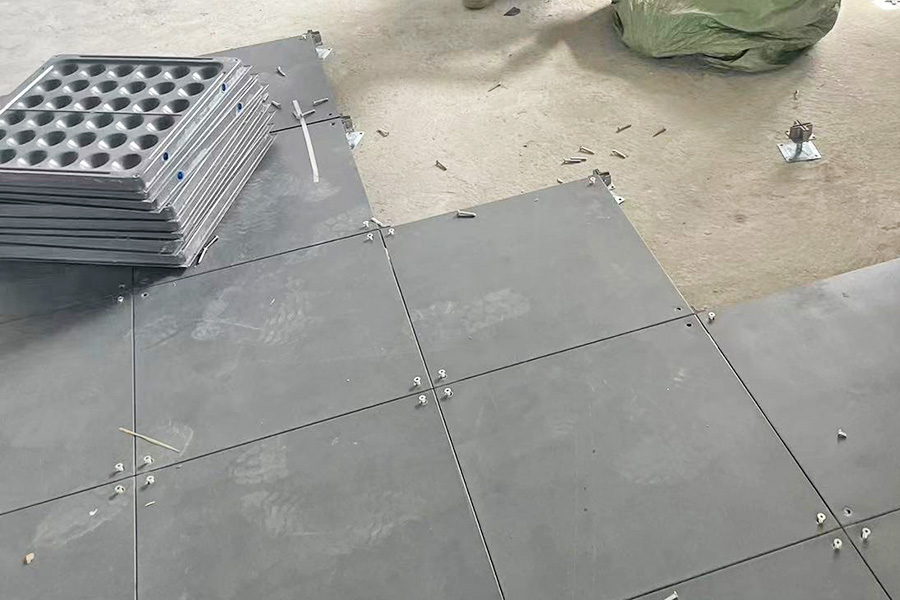

    Real-world case studies
    Plant equipment
    Product shipment
