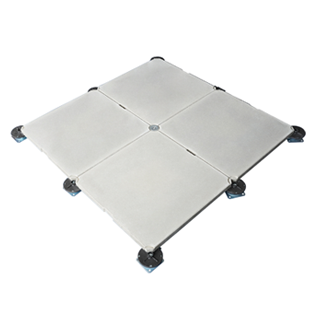

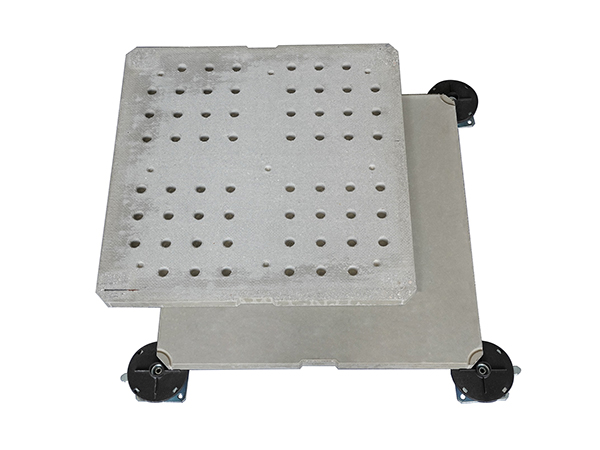

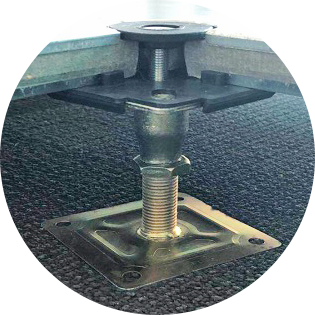

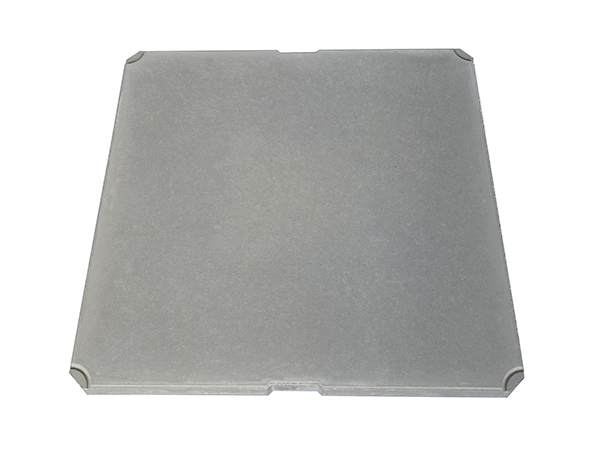

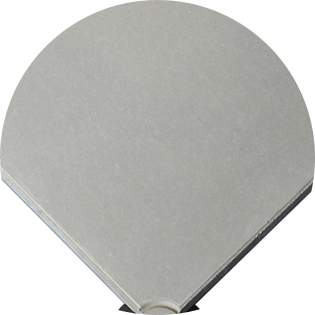

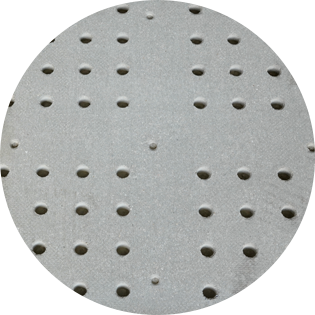

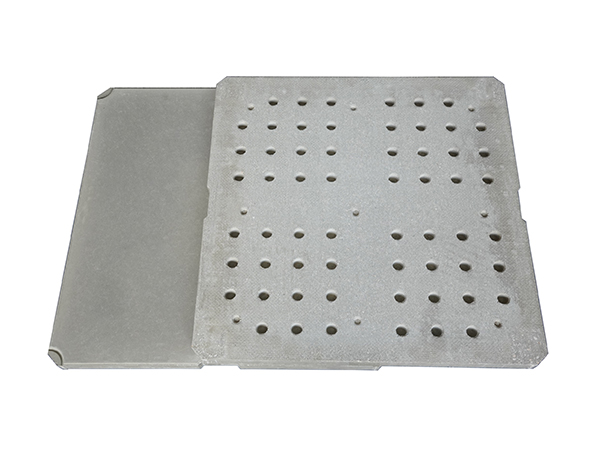

lnorganic network flooring is an environmentall friendly flooring made from materials such as silicates, inorganic fibers, mineral fibers, quart sand,etc..which are formed in one high-pressur process,Each foor has its own threading holes The galvanized base supports the four corners o the floor, without the need for a crossbeam system Each floor has a 90 " arc at the four corners, ang the four panels are combined to form a circle, which is fixed with aluminum nuts at the corners.
GRC Flooring | ||||||||
model | specifications | concentrated load | Uniform load | ultimate load | Fire resistance performance | Remarks | ||
LB | N | KG | ||||||
LP-GRC500CQ | 500*500*26 | 560 | 1960 | 200 | 9720 | 5880 | B1 | |
LP-GRC500Q | 500*500*26 | 680 | 2950 | 300 | 12500 | 8850 | B1 | |
LP-GRC500P | 500*500*26 | 800 | 3550 | 360 | 16000 | 10680 | B1 |

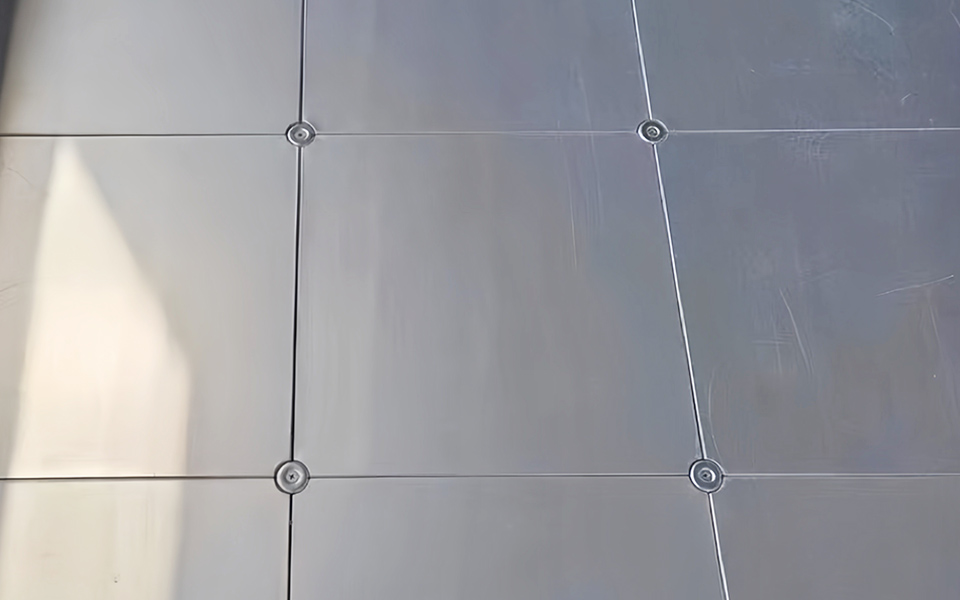

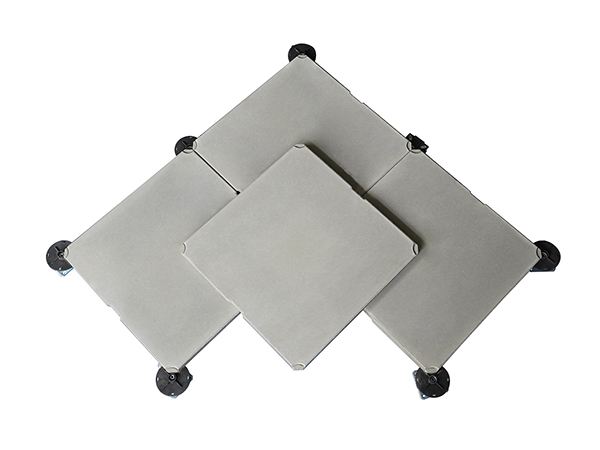

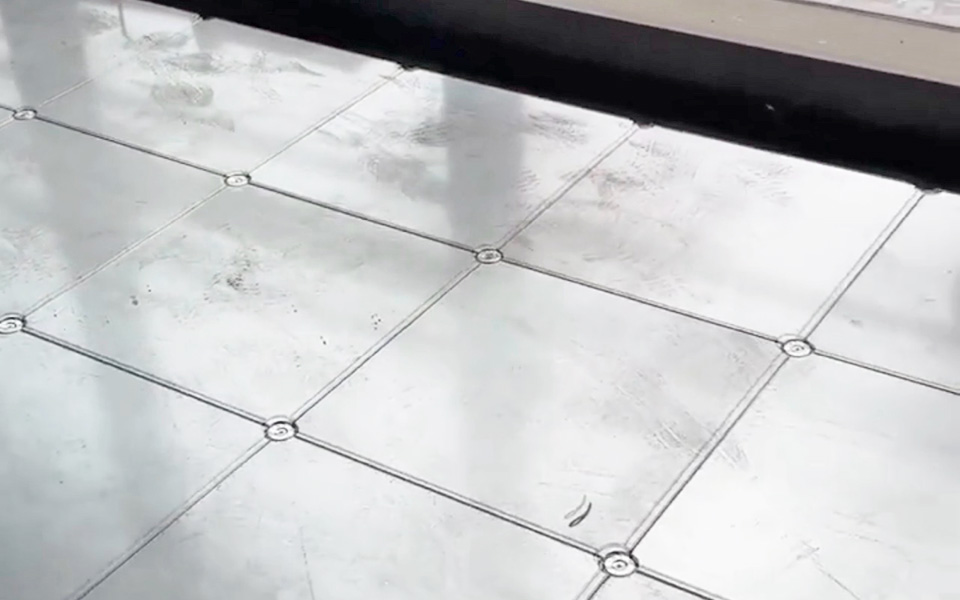

The four panels are combined to form a circle, which is fixed with an aluminum nut, making the splicing compact, stable and durable
Raw materials control, rigorous production process,strict quality system control
Surface selected cement,fireproof anti-slip

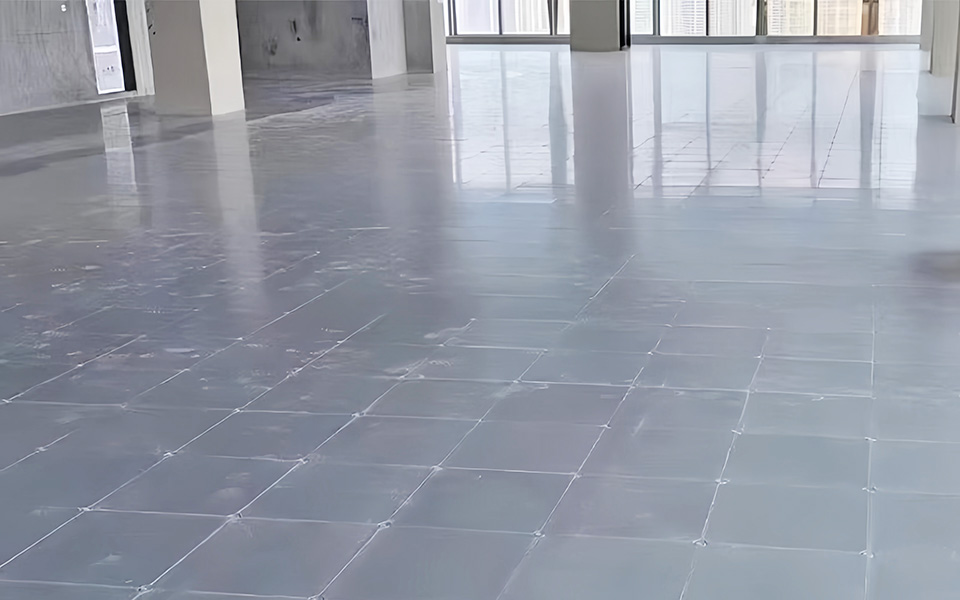

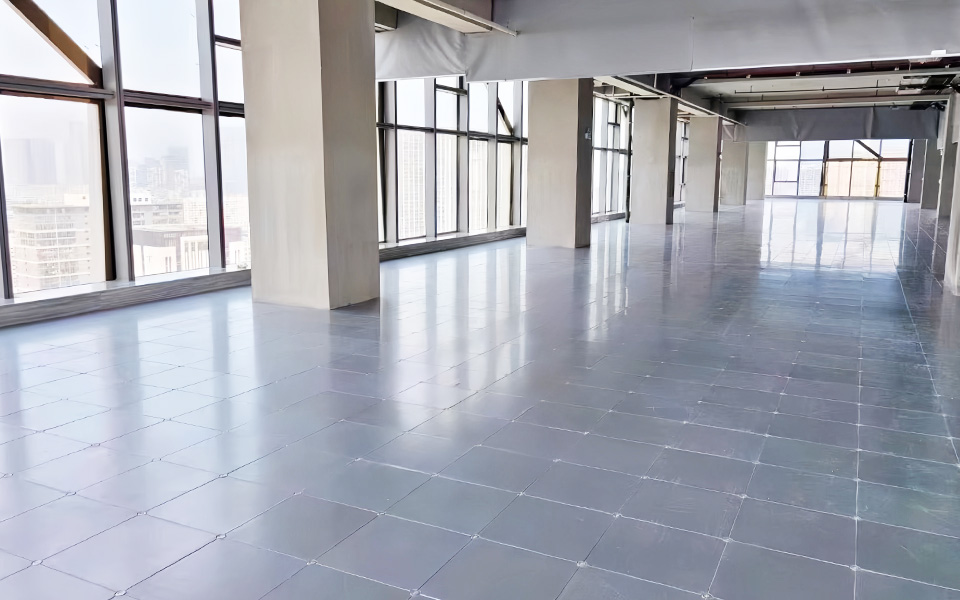

After the floor is installed, the diagonals are neat, there is no height difference, no gaps, the height can be freely adjusted, it is fire-retardant. stable and durable
