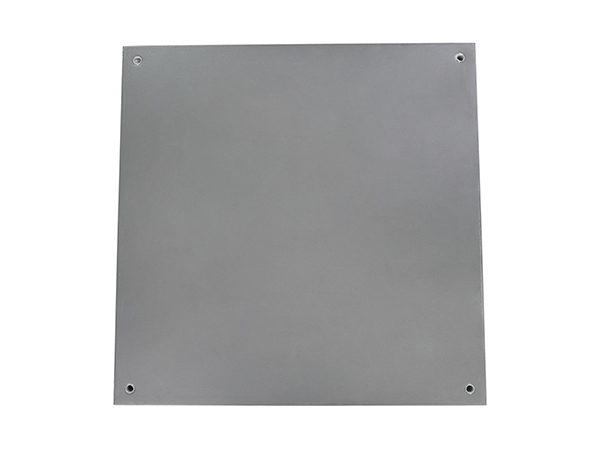

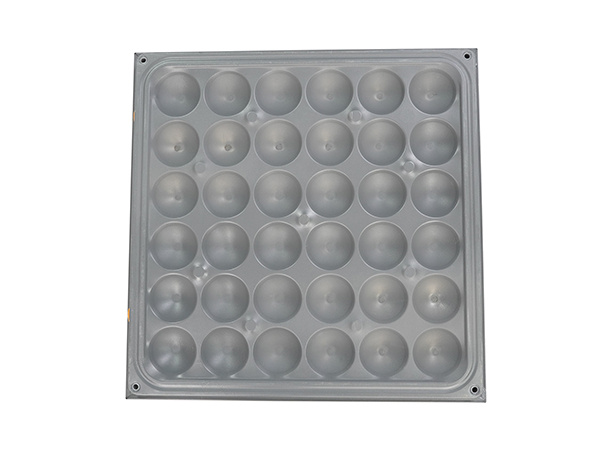

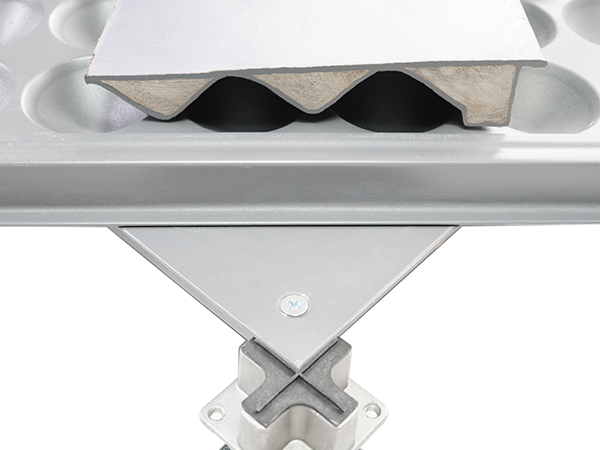

The floor shell is made of high-quality cold-rolled steel plate, which is stretched and weld edinto shape. The surface is phosphatized and then subjected to electrostatic spraying, while the interior is filled with hiah-quality foam cement.in order to solve the wiring difficulties caused by the increasing number of modern intelligent building pipelines, this floor can be equipped with movable cable tray boards to lay various types of pipelines. Simply lift the cable tray cover plate to lay and maintain various types of pipelines, making installation and maintenance extremely convenient.

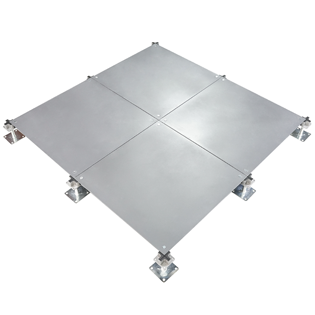

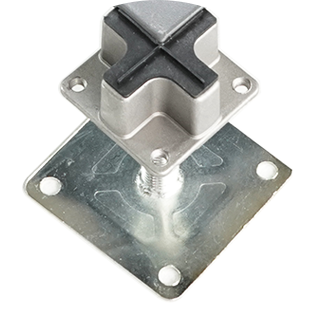

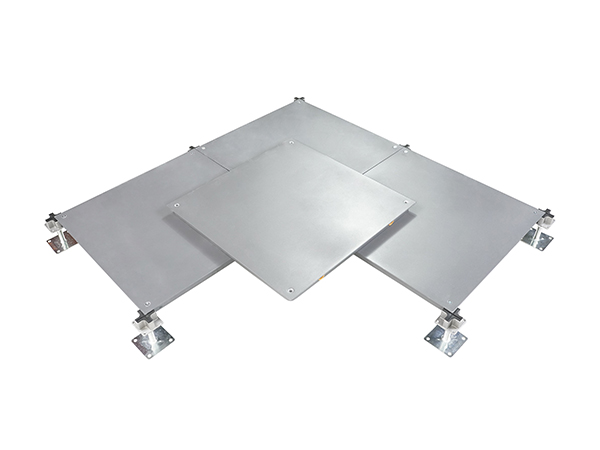

Provided with corner locks and the adjustable four-corner supports,as well as one bracket support for four floors.
The holes of corner locks on the molded floor can assure the stableness of well-mounted floor.

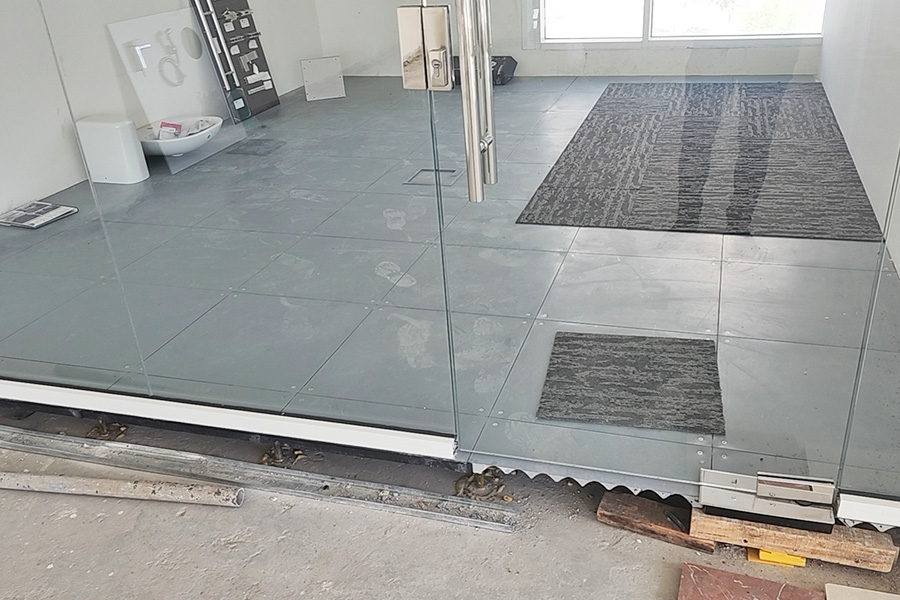

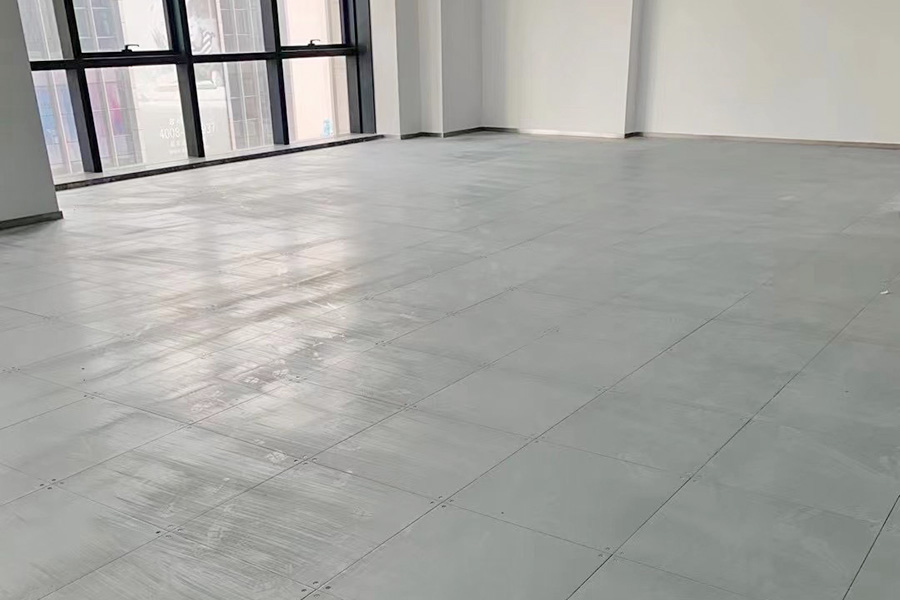

The final flooring can employ square carpets, rolled carpets or PVC veneers and solid wood blocks.
OA-500 network raised access floor | ||||||||
model | specifications | concentrated load | Uniform load | ultimate load | Fire resistance performance | Remarks | ||
LB | N | KG | ||||||
LP-OA500CQ | 500*500*28 | 500 | 1960 | 200 | 9720 | 5880 | A | |
LP-OA500Q | 500*500*28 | 680 | 2950 | 300 | 12500 | 8850 | A | |
LP-OA500P | 500*500*28 | 800 | 3550 | 360 | 16000 | 10680 | A |
All-steel fireproof material, flame retardant and high temperature resistant, non-deforming and non-fading
Made of high-quality steel base material, high density, hard quality, pressure-resistant, impact-resistant
Cold pressed steel plate, fireproof, anti-slip

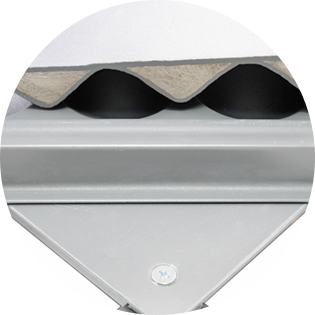

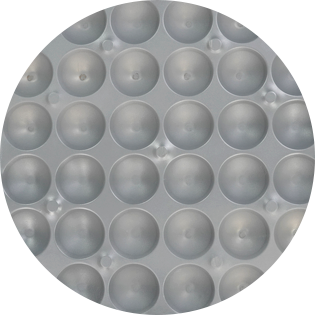

high-quality cold-rolled steel cross reinforcement ribs make the floor rust-free and stronger bearing
